Hood Universal
- Customized lighting with LED lights featuring adjustable intensity and color temperature, from warm to cool tones
- Optimized extraction through the perimeter aspiration system - Perimetral aspiration
Elegant aesthetics

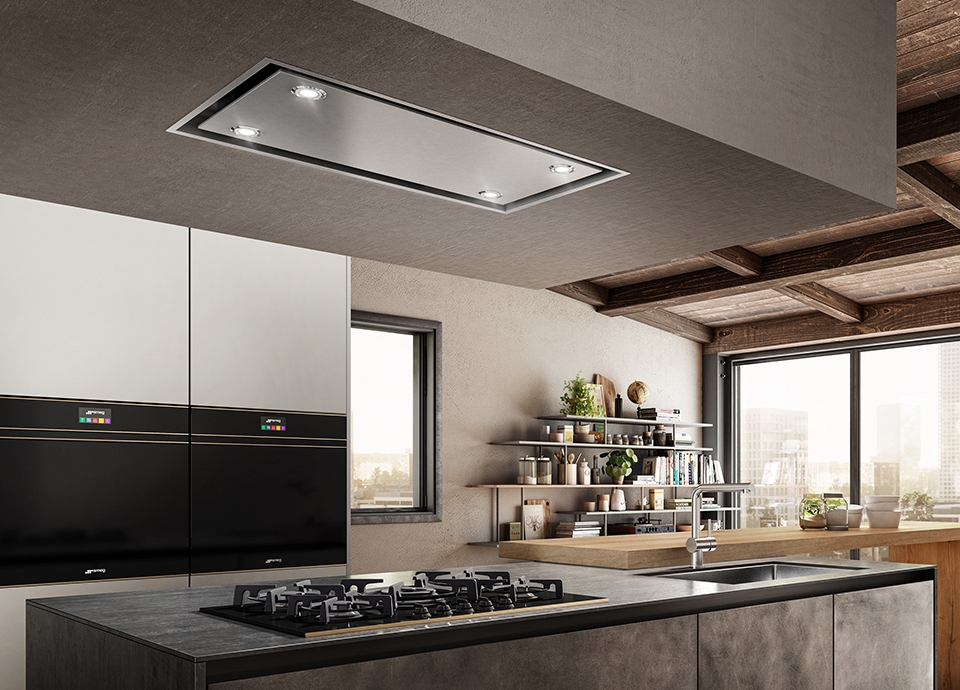

A hood is a very important appliance within of the kitchen and ceiling hoods in particular are becoming increasingly popular in kitchen design due to their sleek minimalist aesthetic as they are much less intrusive than conventional hoods. Smeg’s Ceiling hood finished in stylish brushed stainless steel offers a clean minimal aesthetic with 2 LED stripes to elegantly highlight the hob below.
Electronic controls
Ergonomic and functional, the controls of the Smeg hoods are designed to allow easy and immediate use. The top-of-the-range models feature Touch Control commands, which can be activated with a simple and safe touch.
Program / Functions
No. of speeds:
3
Intensive speed:
Yes
24h air filter function:
No
Ventilação automática:
No
Time-setting options:
No
Other functions:
No
Other options:
No
Type
Product family:
Hood
Tipo de Exaustor:
Ceiling hood
Extraction:
Extraction
Electronic control:
Yes
Perimeter extraction:
Yes
EAN code:
8017709279271
Aesthetics
Colour:
White
Aesthetic:
Universal
Design:
Ceiling
Material:
Stainless Steel + Painted Material
Type of steel:
Brushed
Controls
Control setting:
Electronic buttons
Technical Features
Hood witout motor:
No
Remote motor:
No
No. of lights:
4
Light type:
LED
Light Power:
1 W
Dimmer mode:
No
Escala de temperatura de cor clara (°K):
3000 °K
Free outlet maximum capacity:
820 m³/h
Motor power:
275 W
No. of filters:
2
Anti-grease filters:
Stainless steel
Charcoal filters included:
No
Filter replacement indicator:
No
Minimum distance from GAS hob:
750 mm
Minimum distance from ELECTRIC hob:
650 mm
Vent outlet:
150 mm
Non return valve:
Yes
Performance / Energy Label
Energy efficicency class ( EEC):
A+
Fluid Dynamic Efficiency class (FDEC):
A
Grease Filtering Efficiency Class (GFEC):
F
Lighting Efficiency Class (LEC):
A
Consumo anual de energia (CAE exaustor):
43 kWh/a
Fluid Dynamic Efficiency (FDE):
35.1
Lighting Efficiency (LE):
76.1 lux/W
Grease Filtering Efficiency (GFE):
54.1 %
Air flow at minumum speed (Qmin):
232 m³/h
Air flow at maximum speed (Qmax):
589 m³/h
Air flow at boost speed (Qboost):
792 m³/h
Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin):
46 dBA
Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax):
68 dBA
Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost):
71 dBA
Power consumption in stand-by mode (Ps):
0.41 W
Time increase factor (F):
0.7
Energy Efficiency Index:
41.6
Measured air flow rate at best efficiency point (Qbep):
399 m³/h
Measured air pressure at best efficiency point (Pbep):
486 Pa
Measured electric power input at best efficiency point (Wbep):
154 W
Nominal Power consumption of the light system (WL):
4 W
Average illumination of the light on the cooking surface (Emiddle):
353 lux
Sound power level at highest setting (Lwa):
68 dBA
Electrical Connection
Plug:
No
Electrical connection rating:
280 W
Voltage:
220-240 V
Frequency (Hz):
50-60 Hz
Comprimento do cabo de alimentação:
1500 mm
Speed 1
Extraction rate IEC 61591:
232 m³/h
Noise level IEC 60704-2-13:
47 dBA
Power:
182 W
Speed 2
Extraction rate IEC 61591:
428 m³/h
Noise level IEC 60704-2-13:
58 dBA
Power:
199 W
Speed 3
Extraction rate IEC 61591:
589 m³/h
Noise level IEC 60704-2-13:
69 dBA
Power:
214 W
Intensive speed
Extraction rate (IEC 61591):
792 m³/h
Noise level IEC 60704-2-13:
72 dBA
Power:
270 W
Logistic Information
Dimensions of the product (mm):
295x901x499
Width:
901 mm
Depth (mm):
499 mm
Product Height (mm):
295 mm
Peso líquido (kg):
16.000 kg
Peso bruto (kg):
21.500 kg
Largura do produto embalado (mm):
1005 mm
Profundidade da embalagem (mm):
625 mm
Altura do produto embalado (mm):
421 mm
Dimensões do produto embalado (mm):
421X1005X625
Empilhamento máximo:
4
Tipo de embalagem:
Caixa de cartão
Composição da embalagem - papel e papelão (kg):
2.463 kg
Composição da embalagem - poliestireno (kg ):
0.753 kg
Composição da embalagem - madeira (kg):
0.000 kg
Composição da embalagem - plástico (kg):
0.812 kg
Accessories Included
Sliding door:
No
Remote control:
Yes
Tube reduction:
No
